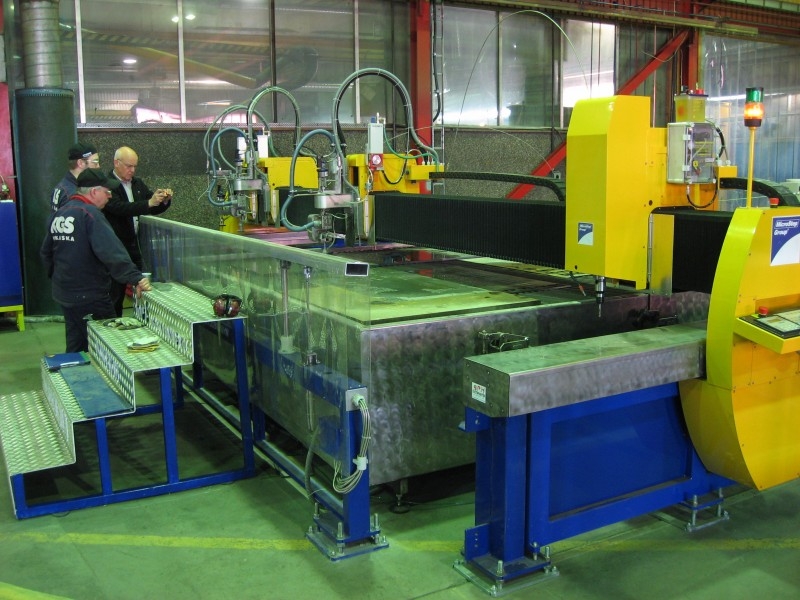

Cutting by the water jet is performed on the most modern, computer controlled machine with the type reference AquaCut.
Cutting by the water jet is performed on the most modern, computer controlled machine with the type reference AquaCut.
|
|
|
AquaCut machine is designed for cutting of the metal and non metal materials by high pressure water jet. It is high-precision technology with the achievement of high quality of cutting surface, and there are increased demands to cover particular parts against erosive effects of water and abrasive effects of abrasives.
It is applied in the conditions, where it is necessary precise cutting of mainly non-metallic materials as stone, ceramics, plastics, rubber , glass...
|
Technical specification
AquaCut
| Machine for cutting with water jet |
| Working width |
1500 - 4000 mm
|
| Working length |
3000 - 18000 mm |
| Max. number of cutting heads |
4 |
| Max. thickness of material cut by water |
150 mm |
| Max. thickness of material cut by plasma mm |
According plasma source |
| Positioning speed |
up to 50 m/min |
| Precision of positioning |
± 0,025 mm according DIN 28 206 |
Advantages of AquaCut
- High precise technology with possibility of achieving high quality of cutting surface
- Increased demands on the cover of particular parts against the erosive effects of water and abrasive effects of abrasives
- Precision cutting of mainly non-metallic materials
General conditions
- Quality of cutting surface is guaranteed according to STN EN ISO 9013, grade I., local defects of the cutting surface when assessing is not considered with this norm in mind
- Documentation for tooling of cutting plans are processed according specified dimension in simple shapes, or drawing documentation of the cut shapes DXF, DWG sent by e-mail, fax or brought personally
- Archiving of drawings
- Standard delivery term from material that is on stock is 3 to 10 working days after order confirmation, express orders are surcharged. Delivered parity EXW producer or after the agreement it is possible also the delivery with the transport of MOLPIR, s.r.o. to the agreed destination
- Cutting of materials delivered by customers
- Possibility of cutting holes up to 0.7mm x thickness depending on the thickness of material
- Labeling (marking) of cuts, with tech. engraving with number of the drawing, notch
|
