Hydraulic pressing machine LEA-50 is a poweful device equipped with modern system that provides the desired constant pressure during the whole process of pressing.
|
|

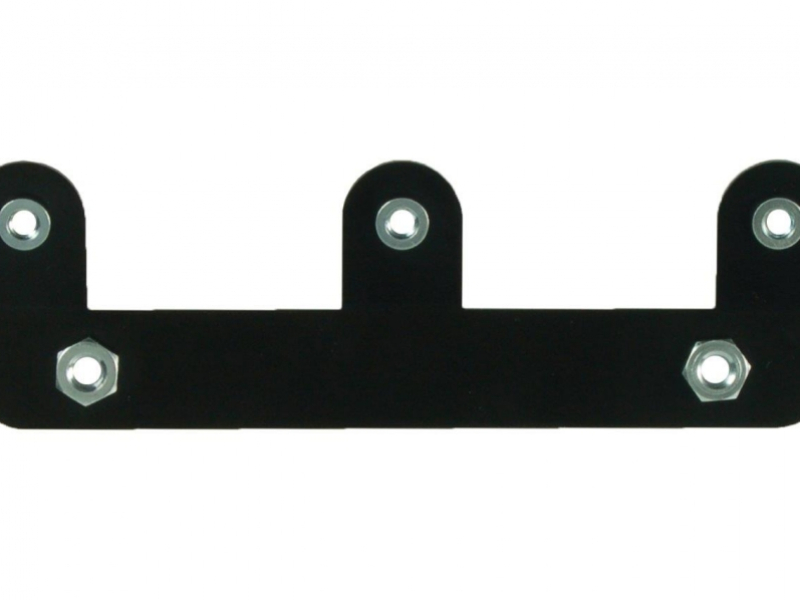

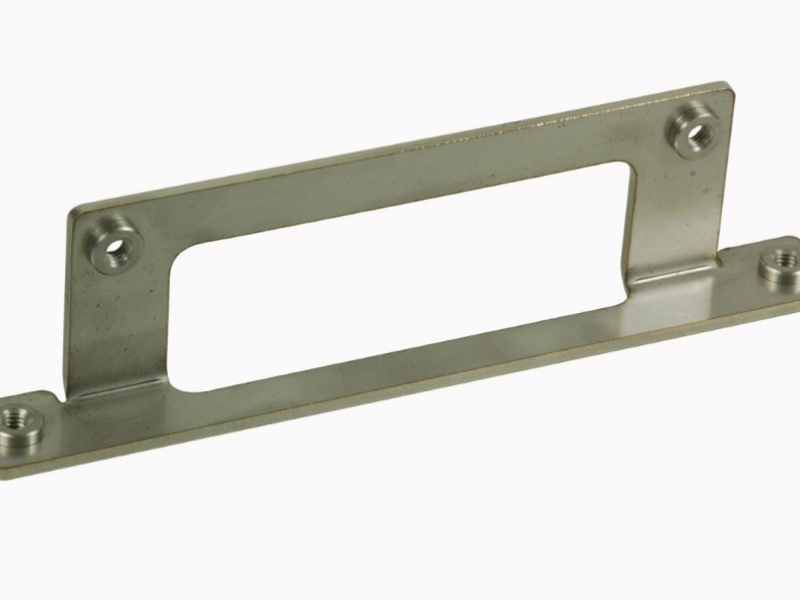

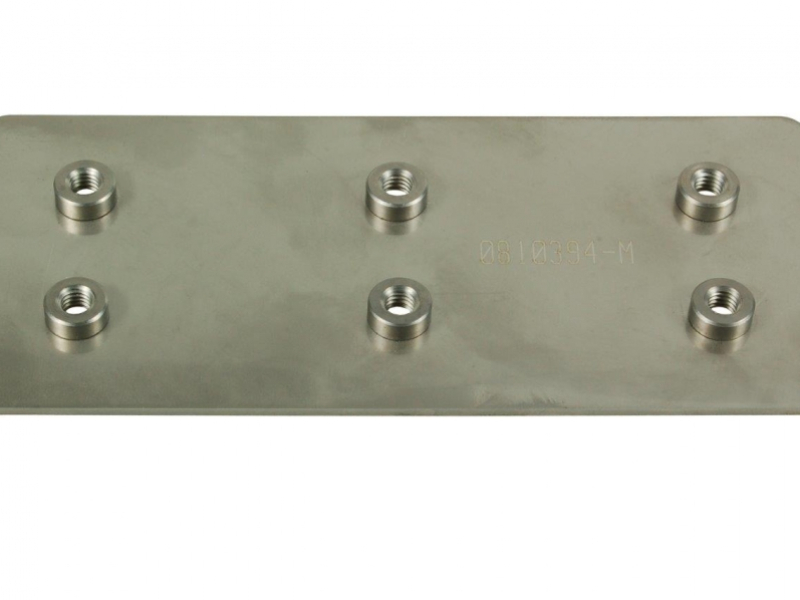

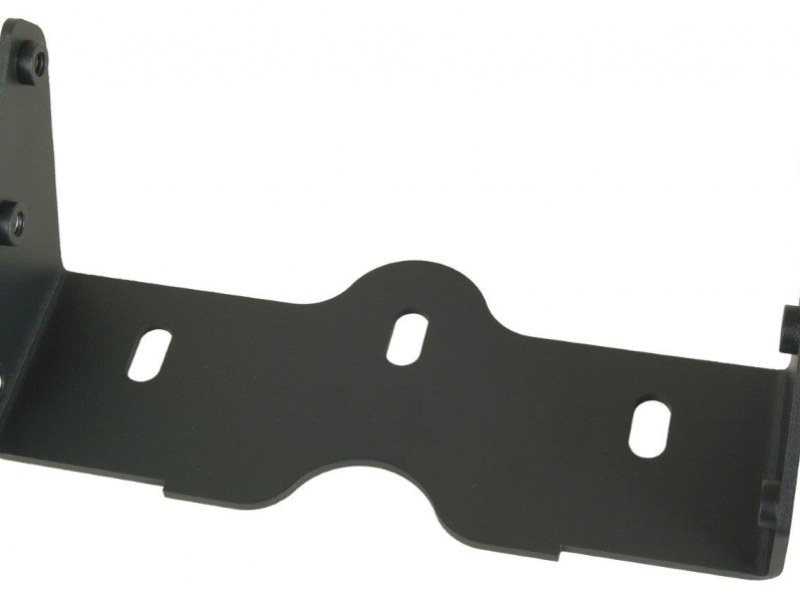

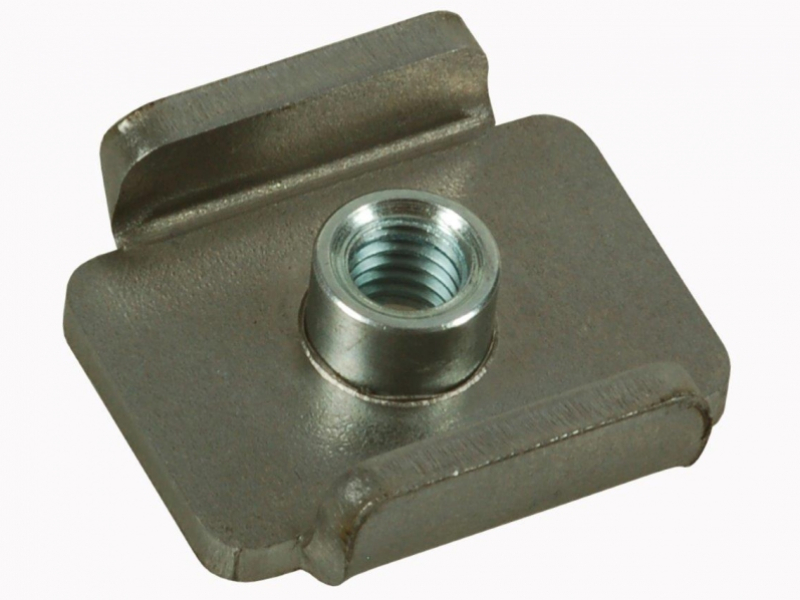

It is intended for pressing the special connecting elements (nuts, studs, screws,etc. ) To thin tin suited for special connecting elements (nuts, studs, screws etc.) into the thin tin metal plates or printed circuit boards.
Installation of the element is performed by the putting it into the lower tool and pressing it by the corresponding power. |
| Maximum pressing power | 50 kN |
| Maximum pressing power while using a reducing bracket | 20 kN |
| Maximum lift of the pressing head | 200mm |
| Height of the workspace | 220mm |
| Height of the working space with bracket | 90mm |
| Depth of the workspace | 50mm |
| Size of working table (width x length) | 1800 x 600 x 920mm |
 |
 |
 |
 |
 |
 |
